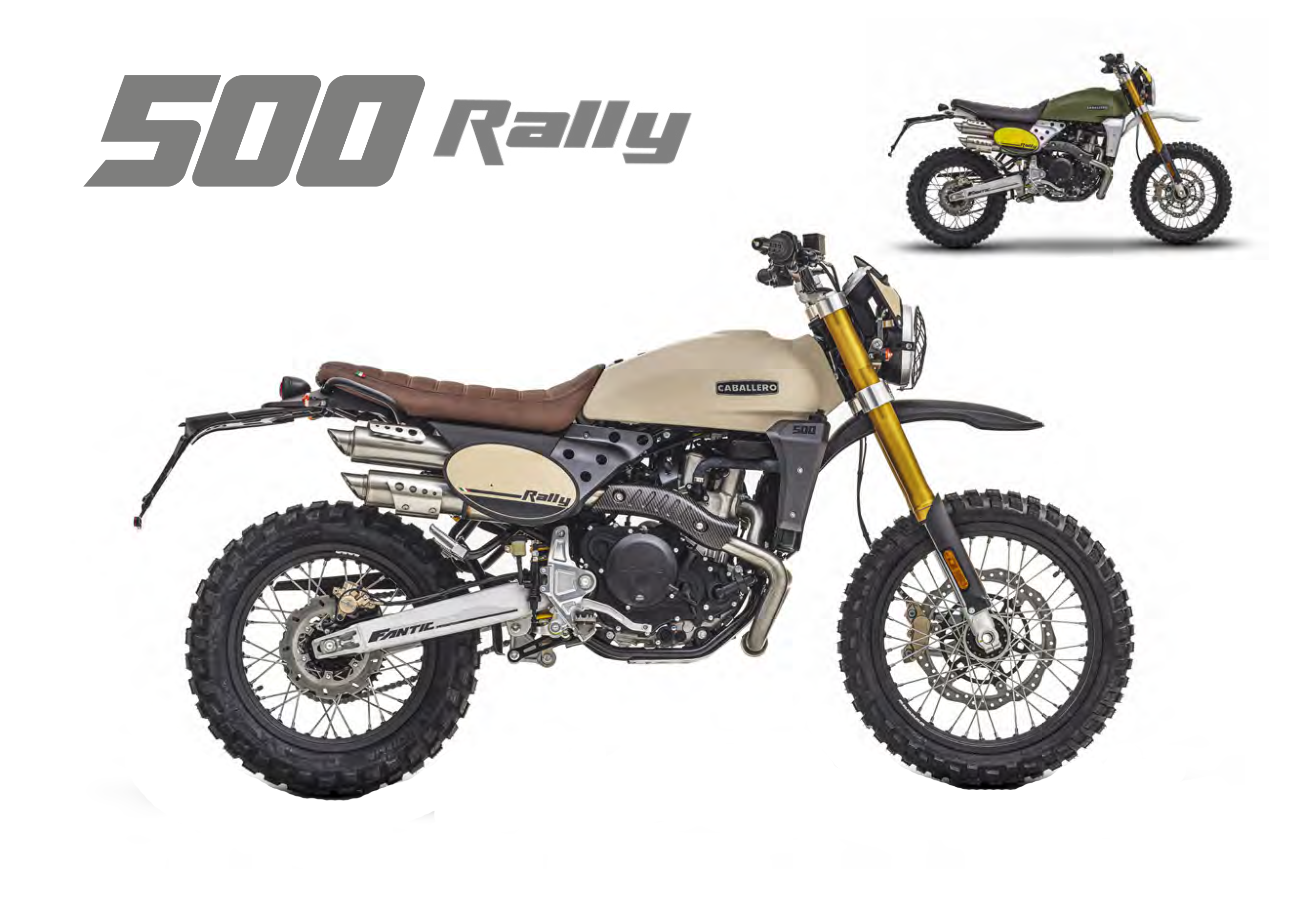

500 RALLY

ENGINE

Single cylinder 4 stroke, Euro5, liquid cooled

DISPL ACEMENT

449 cc

MAXIMUM POWER

28,3 kW to 7500 rpm

MAXIMUM TORQUE

43 Nm to 6000 rpm

BORE

94.5 mm

STROKE

64 mm

DISTRIBUTION

Single camshaft - 4 valve

FUEL SYSTEM

Electronic Fuel injection - throttle body ø 40mm

STARTER

Electric

GEARS

6

CLUTCH

Multi plate wet clutch

EXHAUST SYSTEM

Dual exhaust by ARROW

FRAME

CrMo steel central-tube frame

SWINGARM

In steel with variable section and progressive link

TIRES

110/80 R19, 140/80 R17

WHEELS

Spoked with aluminum rims

BRAKES

Front floating brake disc ø320mm – Rear brake disc ø230mm

ABS

Continental two-channel ABS (disengageable

FRONT SUSPENSION

ø43mm upside down

FRONT SUSPENSION TRAVEL

200 mm

REAR SUSPENSION

Rebound damping regulation

REAR SUSPENSION TRAVEL

200 mm

SEAT HEIGHT

860 mm

WHEELBASE

1425 mm

LENGTH

2080 mm

DRY WEIGHT

150 kg

FUEL TANK

12 L

FUEL CONSUMPTION

4,2 l/100 km

CO2 EMISSION

97 g/km
