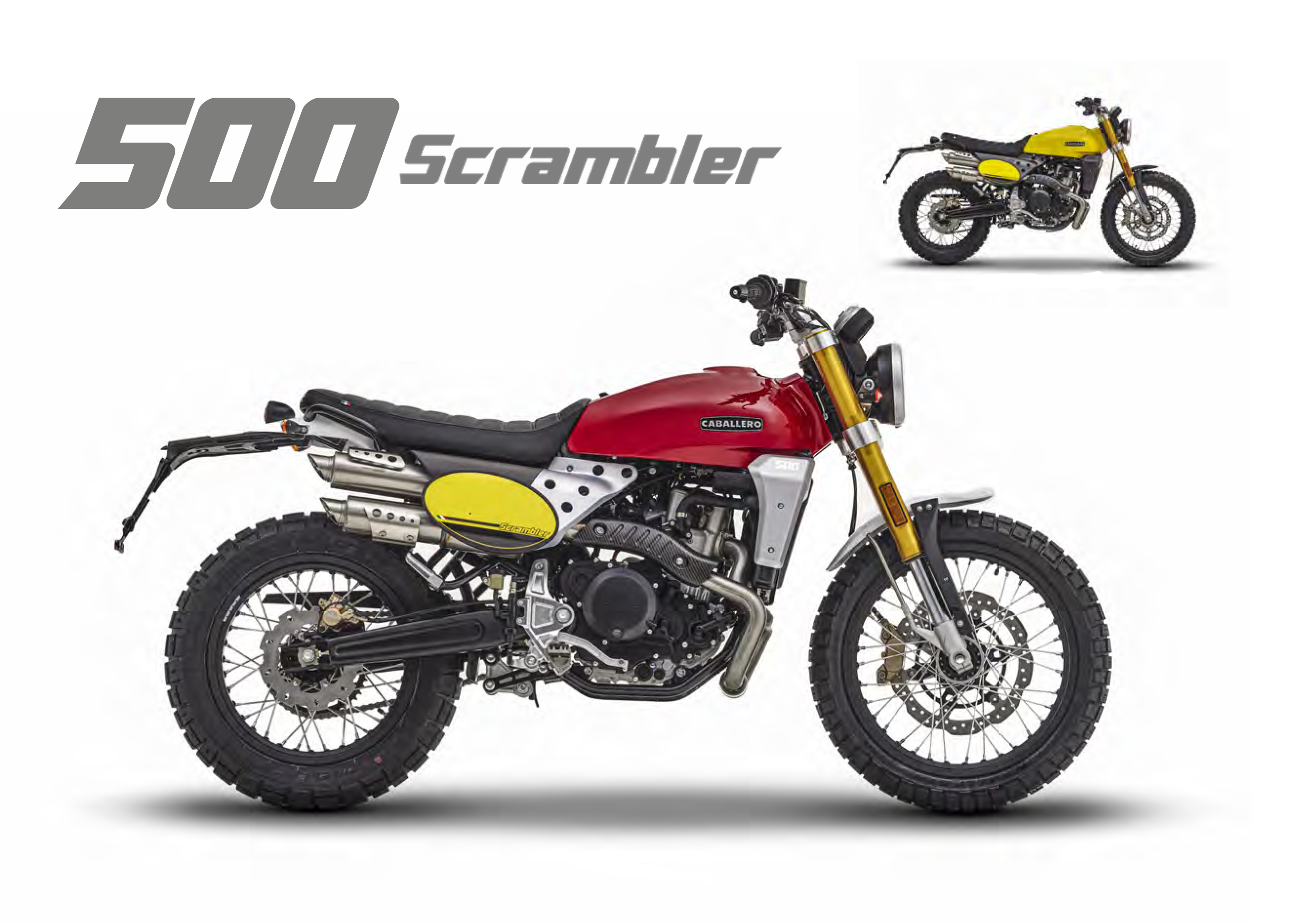

500 SCRAMBLER

BIKES

CABALLERO

500 scrambler

ENGINE

Single cylinder 4 stroke, Euro5, liquid cooled

DISPL ACEMENT

449 cc

MAXIMUM POWER

28,3 kW to 7500 rpm

MAXIMUM TORQUE

43 Nm to 6000 rpm

BORE

94.5 mm

STROKE

64 mm

DISTRIBUTION

Single camshaft - 4 valve

FUEL SYSTEM

Electronic Fuel injection - throttle body ø 40mm

STARTER

Electric

GEARS

6

CLUTCH

Multi plate wet clutch

EXHAUST SYSTEM

Dual exhaust by ARROW

FRAME

CrMo steel central-tube frame

SWINGARM

In steel with variable section and progressive link

TIRES

110/80 R19, 140/80 R17

WHEELS

Spoked with aluminum rims

BRAKES

Front floating brake disc ø320mm – Rear brake disc ø230mm

ABS

Continental two-channel ABS (disengageable

FRONT SUSPENSION

ø41mm upside down

FRONT SUSPENSION TRAVEL

150 mm

REAR SUSPENSION

Rebound damping regulation

REAR SUSPENSION TRAVEL

150 mm

SEAT HEIGHT

820 mm – optional seat 840 mm

WHEELBASE

1425 mm

LENGTH

2080 mm

DRY WEIGHT

150 kg

FUEL TANK

12 L

FUEL CONSUMPTION

4,2 l/100 km

CO2 EMISSION

97 g/km

RED VERSION

YELLOW VERSION
