SPECIFICATIONS

ENGINE	Single cylinder 4 stroke, Euro5, liquid cooled
DISPL ACEMENT	449 cc
MAXIMUM POWER	28,3 kW to 7500 rpm
MAXIMUM TORQUE	43 Nm to 6000 rpm
BORE	94.5 mm
STROKE	64 mm
DISTRIBUTION	Single camshaft - 4 valve
FUEL SYSTEM	Electronic Fuel injection - throttle body ø 40mm
STARTER	Electric
GEARS	6
CLUTCH	Multi plate wet clutch
EXHAUST SYSTEM	Dual exhaust by ARROW
FRAME	CrMo steel central-tube frame
SWINGARM	In steel with variable section and progressive link
TIRES	110/80 R19, 140/80 R17
WHEELS	Spoked with aluminum rims
BRAKES	Front floating brake disc ø320mm – Rear brake disc ø230mm
ABS	Continental two-channel ABS (disengageable
FRONT SUSPENSION	ø43mm upside down
FRONT SUSPENSION TRAVEL	200 mm
REAR SUSPENSION	Rebound damping regulation
REAR SUSPENSION TRAVEL	200 mm
SEAT HEIGHT	860 mm
WHEELBASE	1425 mm
LENGTH	2080 mm
DRY WEIGHT	150 kg
FUEL TANK	12 L
FUEL CONSUMPTION	4,2 l/100 km
CO2 EMISSION	97 g/km

SAND VERSION

GREEN VERSION

ENGINE	Single cylinder 4 stroke, Euro5, liquid cooled
DISPL ACEMENT	449 cc
MAXIMUM POWER	28,3 kW to 7500 rpm
MAXIMUM TORQUE	43 Nm to 6000 rpm
BORE	94.5 mm
STROKE	64 mm
DISTRIBUTION	Single camshaft - 4 valve
FUEL SYSTEM	Electronic Fuel injection - throttle body ø 40mm
STARTER	Electric
GEARS	6
CLUTCH	Multi plate wet clutch
EXHAUST SYSTEM	Dual exhaust by ARROW
FRAME	CrMo steel central-tube frame
SWINGARM	In steel with variable section and progressive link
TIRES	110/80 R19, 140/80 R17
WHEELS	Spoked with aluminum rims
BRAKES	Front floating brake disc ø320mm – Rear brake disc ø230mm
ABS	Continental two-channel ABS (disengageable
FRONT SUSPENSION	ø41mm upside down
FRONT SUSPENSION TRAVEL	150 mm
REAR SUSPENSION	Rebound damping regulation
REAR SUSPENSION TRAVEL	150 mm
SEAT HEIGHT	820 mm – optional seat 840 mm
WHEELBASE	1425 mm
LENGTH	2080 mm
DRY WEIGHT	150 kg
FUEL TANK	12 L
FUEL CONSUMPTION	4,2 l/100 km
CO2 EMISSION	97 g/km

RED VERSION

YELLOW VERSION

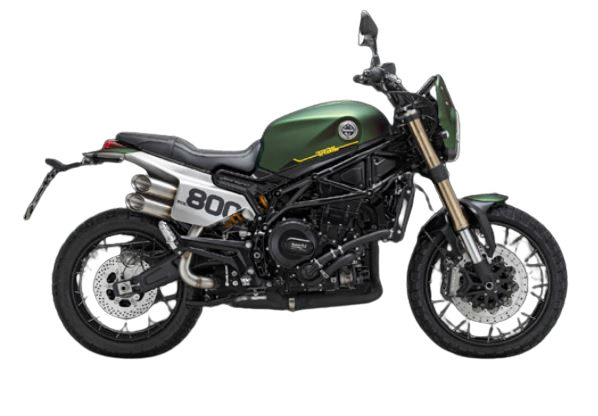

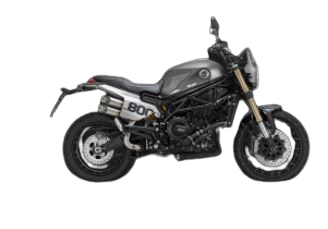

ENGINE
Type	2 cylinder/4-stroke/ 8 valve
Valve Train	DOHC
Bore & Stroke	88 x 62mm.
Displacement	754c.c
Rated Output	56 kW (76,2 Cv) @ 8500 rpm
Max Torque	67Nm @6,500 rpm
Compression Ratio	11.5:1
Gearbox	6-speed
Lubrication	Forced lubrication
Clutch	Wet multi-plate
Fuel System	EFI
Exhaust System	Catalytic converter & O2 sensors
Starting	Electric
Cooling System	Water-cooled

ROCK GREY

FOREST GREEN

TERRAIN BROWN

CHASSIS
Frame	Trestle steel tube
Front Suspension	Upside-down forks Ø 50mm
Rear Suspension	Aluminium swing arm, lateral shock absorber spring preload, hydraulic rebound brake adjustable
Front Brake	Twin semi-floating disk ø320 mm, radial calliper 4 pistons ABS
Rear Brake	Single disc ø260 mm with double piston ABS
Front Wheel	Pirelli Scorpion Rally STR 120/70 R 19 M/C 60V
Rear Wheel	Pirelli Scorpion Rally STR 170/60 R 17 M/C 72V
Front Tyre	120/70 - R19 – M/C 60W
Rear Tyre	170/60 - R17 – M/C 72W
Wheelbase	1480mm
Ground Clearance	191mm
Wet Weight	234kg
Fuel Capacity	15lt (3lt Reserve)

ENGINE TYPE	SINGLE CYLINDER, 4-STROKE,2-VALVES,SOHC
BORE X STROKE (MM)	53x55
COMPRESSION RATIO	9.0:1
DISPLACEMENT (CC)	124
COOLING SYSTEM	AIR COOLED
IGNITION	TLI
MAXIMUM POWER	8.44HP AT 7,500RPM
MAXIMUM TORQUE	9.2NM AT 6,000RPM
CLUTCH TYPE	AUTOMATIC
FUEL SYTEM	ELEECTRONIC FUEL INJECTION
STARTER	ELECTRIC & KICK
TRANSMISSION	BELT
FRAME TYPE	ROCKER TYPE
FRONT SUSPENSION	TELESCOPIC FORKS
REAR SUSPENSION	TELESCOPIC COIL SPRING OIL DAMPED
FRONT BRAKE	DISC, 190MM
FRONT TYRE	110/90-R12
OVERALL LENGTH (MM)	1820
OVERALL WIDTH (MM)	690
OVERALL HEIGHT (MM)	1090
SEAT HEIGHT (MM)	760
WHEELBASE (MM)	1270
GROUND CLEARANCE (MM)	135
WEIGHT (KG)	104
FUEL CAPACITY (L)	4.6
BATTERY	12V6AH (YTX7A - BS)

BLACK

YELLOW

RED

WHITE

Engine Type	Inline Two Cylinders, 4-stroke, DOHC, 8-Valves
Bore & Stroke (mm)	83x60
Displacement	649
Cooling Syetem	Liquid Cooled
Compression Ratio	11.3:1
Maximum Power	60Hp at 8,500rpm
Maximum Torque	56Nm at 7,000rpm
Fuel System	BOSCH Electronic Fuel Injection
Starter	Electric
Frame Type	20 Cr-Mo Alloy
Front Suspension	Marzocchi Shock Absorbers
Rear Suspension	KYB Adjustable Shock Absorber

Front Brake	Dual Disc 298 mm, Brembo Four Pistons Caliper
Rear Brake	Single Floating Disc 255 mm, Brembo Dual Pistons Caliper
Brake System	BOSCH ABS 9.1 Dual Channel (Switchable)
Wheel Rim	Aluminium Alloy / vaccum Spoke
Front Brake	110/80-19M/C59H
Rear Brake	150/70-17m/C69V
Overall Length (mm)	2,200
Overall Width (mm)	900
Overalla height (mm)	1,390
Seat Height (mm)	810/835
Wheelbase (mm)	1,490
Weight (kg)	210
Fuel Capacity (L)	18
Battery	12V11Ah (Free Maintenance)
